Description
24'' Self Tracking Gravity Plastic Skate Wheel Conveyor is designed to expand, contract and move easily, the self tracking, gravity skate wheel conveyor has a per meter capacity of 100kgs. This unit is engineered to handle multi-sized cartons in low to medium volume applications.
The all-steel construction provides unmatched structural integrity, whether the conveyor is extended, compacted or configured in simple or compound curves. Adjustable inner legs vary height to achieve gravity flow.
The gravity skate wheel conveyor is the choice for use in retail store level applications, packaging areas, assembly lines and in low volume shipping and receiving departments.
Features
WIDTH: 14”, 18” or 24”
Determined by package size, available conveying area and application specific needs
LENGTH EXTENDED: 8’ - 60’
Determine total length needed, includ- ing curvatures and obstructions
AXLE CENTER: 5.25”, 4” or 3”
Package size determines necessary axle center length on fully extended con- veyor
SKATE WHEEL TYPE: STEEL, BLACK, WHITE,GRAY,YELLOW Determined by package weight, durabil- ity, operational flow control, and appli- cation specific needs
Standard Features
Load capacity 100kg/m
Black ABS skate wheels with steel ball bearings
5.25” axle centers
20"-28" or 28” – 44” adjustable conveyor heights using hand knobs to raise or lower the legs
Heavy duty steel square tubing zinc plated legs
Welded horizontal leg brace
Heavy duty 5" casters with 2 total lock brake casters on each end
14 gauge curved steel side links assembled using steel pin and retaining ring
5/16” diameter axle across the width Self-tracking design
Couplers
Heavy duty retractable package stop
|
|

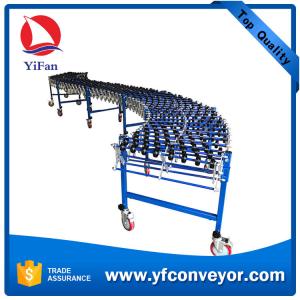

24'' Self Tracking Gravity Plastic Skate Wheel Conveyor Images
|
