Manufacturer Expandable Extendable Powered Flexible Conveyor with Belt Drive Rollers

Name: Manufacturer Expandable Extendable Powered Flexible Conveyor with Belt Drive Rollers
Brand: YiFan
Price: 1 USD

Quality Manufacturer Expandable Extendable Powered Flexible Conveyor with Belt Drive Rollers wholesale

Brand Name : YiFan

Model Number : FPR

Certification : Manufacturer Expandable Extendable Powered Flexible Conveyor with Belt Drive Rollers

Place of Origin : China

MOQ : 4m

Price : negotiable

Payment Terms : T/T,L/C

Supply Ability : 100 units/month

Delivery Time : 20-30 days

Packaging Details : plywood pallet,cardboard,bubble film

Delivery Port : Ningbo,Shanghai

Load Capacity : 30kg/m

Conveyor Type : Roller Conveyor

Structure : telescopic conveyor

Condition : New

Conveyor Width : 600mm

Conveyor Height : 600-800mm

Conveyor Length : 4m-20m

Frame and Legs Material : carbon steel,powder coated

Roller Material : carbon steel,galvanized

Roller Diameter : 50mm

Roller Width : 600mm,700mm,800mm

Roller Type : grooved rollers

Variable Speed : 10-18m/min

Frequency Transfer : DELTA brand

Motor Power : 90w per meter

Wheels : 150mm diameter lockable swivel wheel

Contact Now

Description

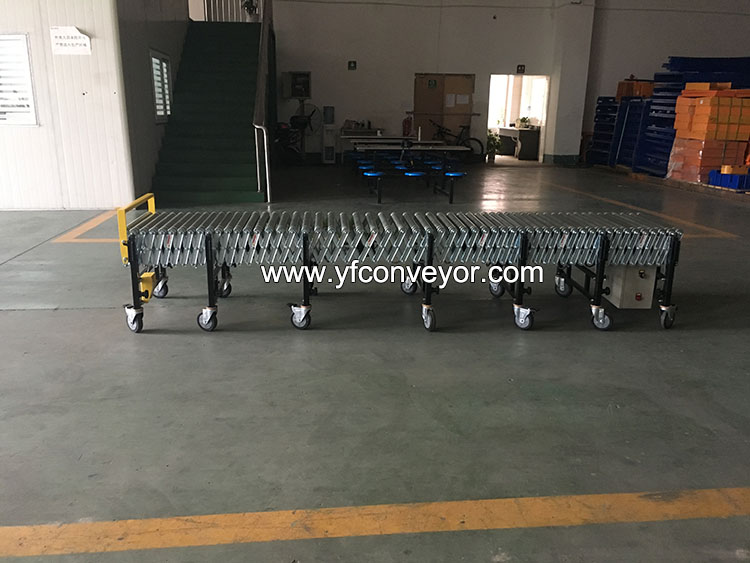

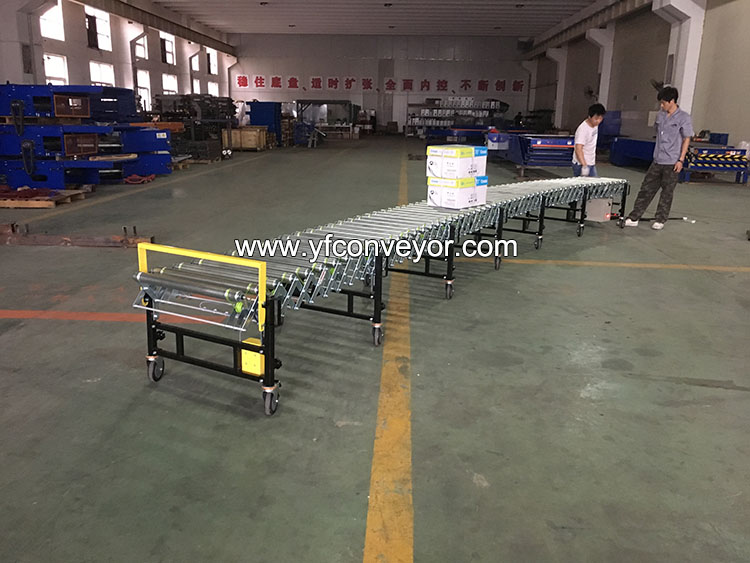

Manufacturer Expandable Extendable Powered Flexible Conveyor with Belt Drive Rollers

EASY,SAFE,QUICK & EFFICIENT GOODS DELIVERY

Length

Width

Adjustable Height

Variable Speed

Max.Load

Motor

Voltage

4m-20m

350-1000mm

600-800mm

10-18m/min

30kg/m

90W/m

220V/380V

Features

* Belt:high quality O ring PU belt,L260*5mm

* Roller:Dia 50*1.5mm galvanized steel roller,Max.130mm center to center

* Motor:90W electronic governor motor,TAIWAN CHENGGANAG brand

* Caster:Dia 150mm high quality swivel lockable polyurethane casters

* Frame:3.5mm thickness galvanized curved join plates with better load

* Leg:32×32 powder coated tube with 25×25 galvanized tube inside

* Height:600-800mm as standard(can be customized)

* Width:600mm as standard(350-1000mm optional)

* Control Box: Forward,Reverse,Emergency stop

* Hooks:Convenient to join two or more units quickly and easily

* Package End Stop Guard:available

* Application:perfect to convey cartons and boxes

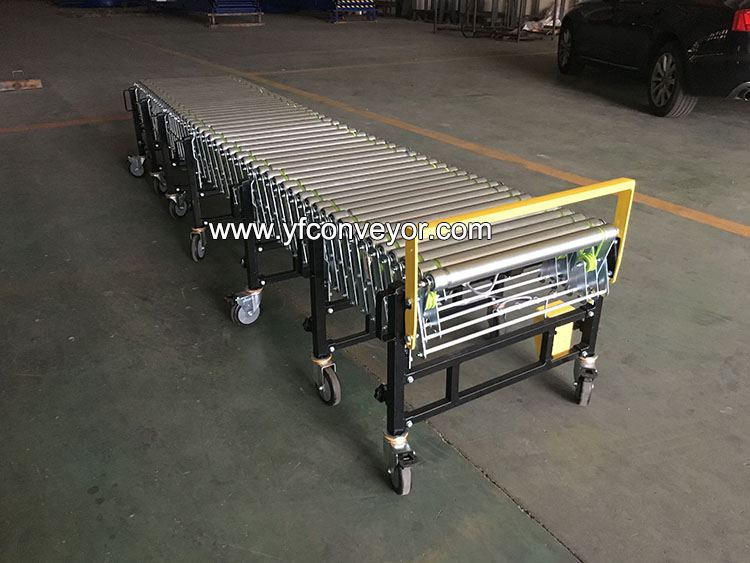

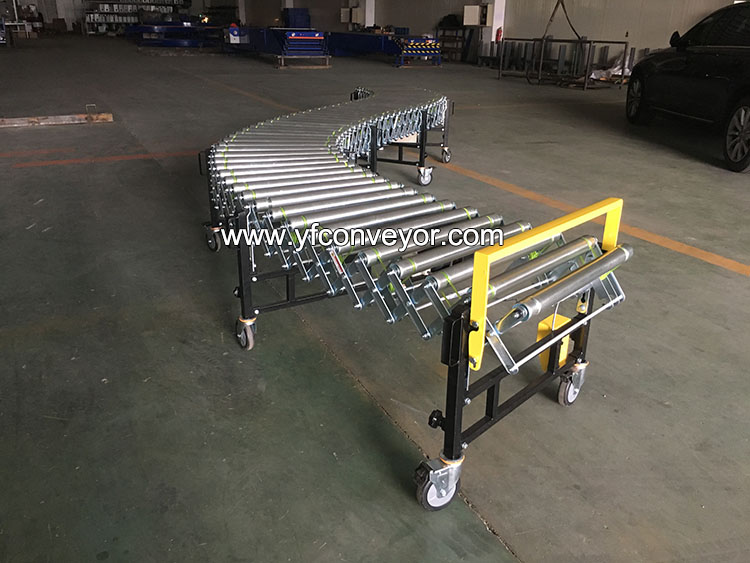

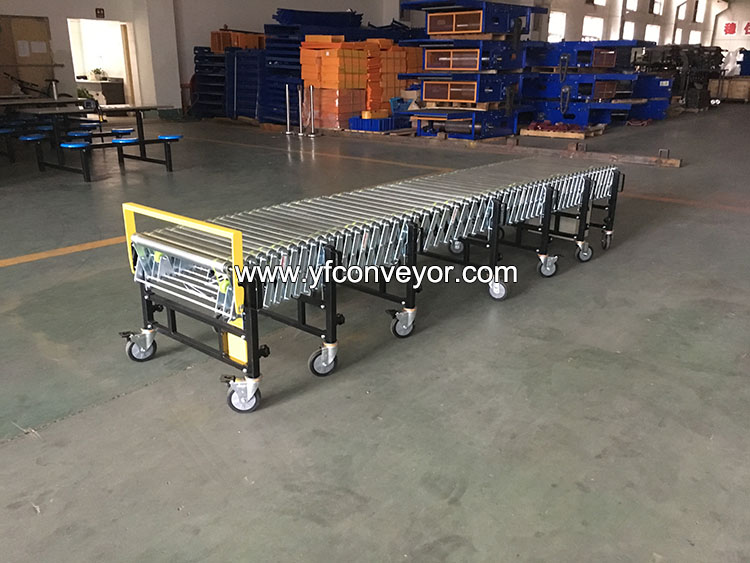

Manufacturer Expandable Extendable Powered Flexible Conveyor with Belt Drive Rollers

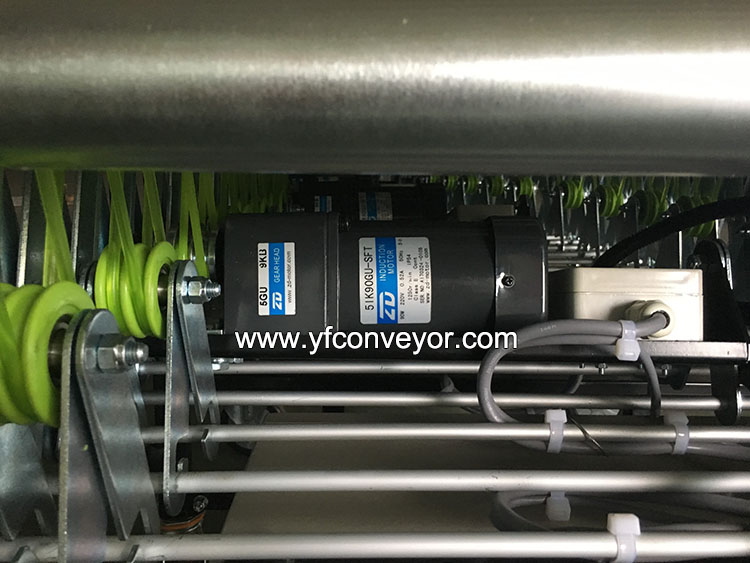

Driven by continuous duty multi motors to ensure enough power.

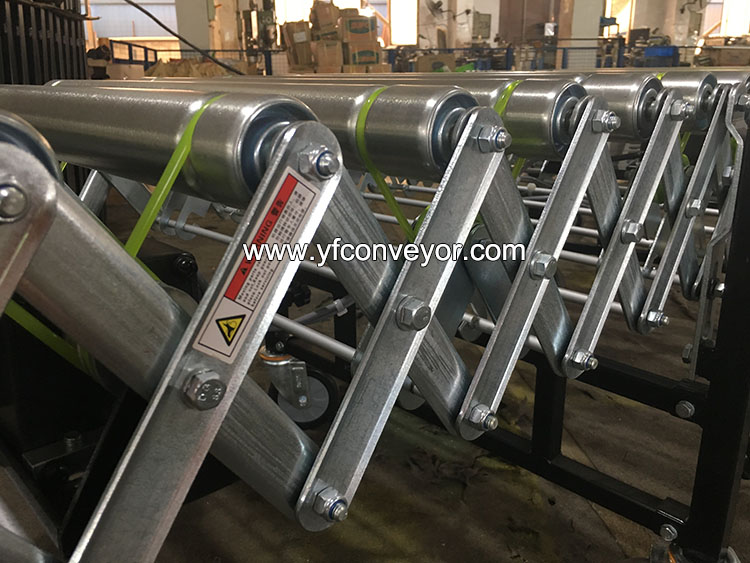

3mm thick strengthened side links with nice load.

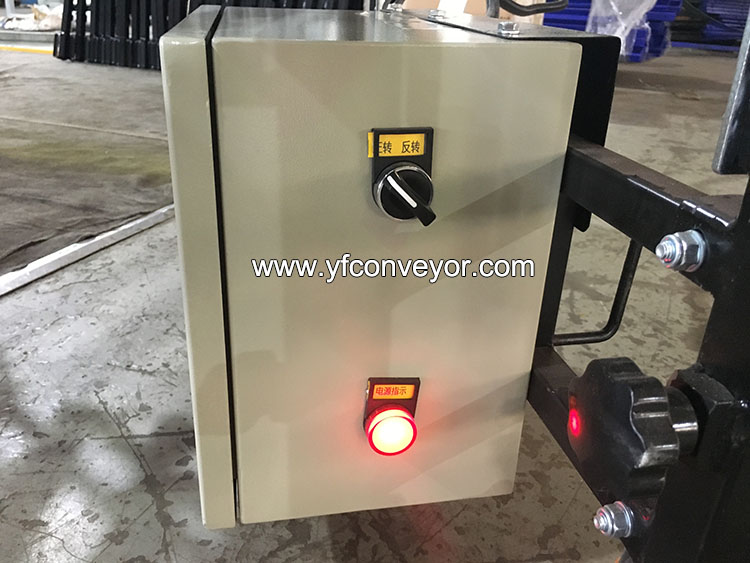

Independent control box: Forward,Stop,Reverse

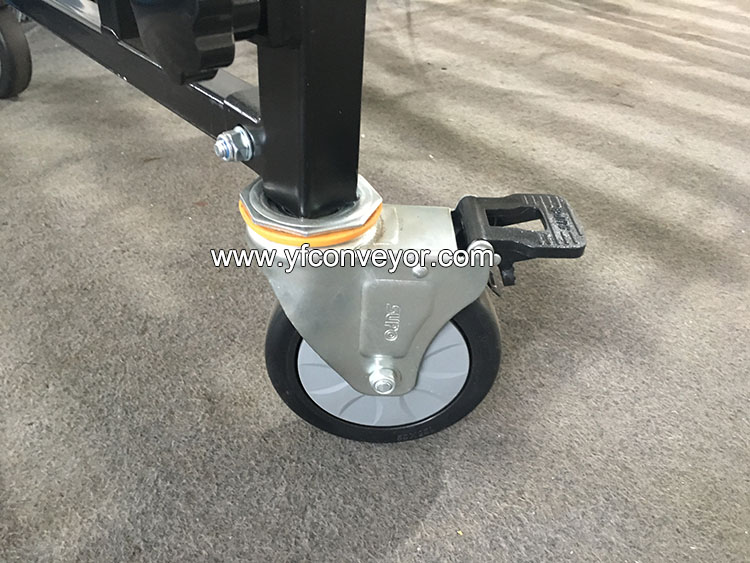

5'' heavy duty swivel casters with brakes.

Application

Manufacturer Expandable Extendable Powered Flexible Conveyor with Belt Drive Rollers

Quickly loading cartons from warehouse to containers,trucks.

:https://youtu.be/Zhv8GOtUvPY

Manufacturer Expandable Extendable Powered Flexible Conveyor with Belt Drive Rollers

Transport tea bags into elevator and lift down to ground floor.

: https://youtu.be/UZs9RlU7Jq4

Manufacturer Expandable Extendable Powered Flexible Conveyor with Belt Drive Rollers

Conveying empty oil Jerry cans to stores

:https://youtu.be/SuC-3-ooB0w

Manufacturer Expandable Extendable Powered Flexible Conveyor with Belt Drive Rollers

Conveying cartons in all kinds of distribution centers.

:https://youtu.be/XP-hg-LAeeQ

Packing and Shipping

Packing material is plywood pallet no need fumigation pallets.

Manufacturer Expandable Extendable Powered Flexible Conveyor with Belt Drive Rollers
