Gravity Stainless Steel Roller Conveyor with Aluminum Beam

Product Categories

Ningbo YiFan Conveyor Equipment Co.,Ltd.

Contact Now

Gravity Stainless Steel Roller Conveyor with Aluminum Beam

Name: Gravity Stainless Steel Roller Conveyor with Aluminum Beam
Brand: YiFan
Price: 1 USD

Quality Gravity Stainless Steel Roller Conveyor with Aluminum Beam wholesale

Place of Origin : Ningbo,China

Brand Name : YiFan

Certification : Gravity Roller Conveyors

Model Number : GRC

MOQ : 1 unit

Price : optional

Packaging Details : plywood pallet/cardboard/bubble film

Delivery Time : 2 weeks

Payment Terms : T/T,L/C

Supply Ability : 100 units/month

Load Capacity : 50kg/m

Material : Carbon steel

Material Feature : Heat Resistant

Structure : Inclining Conveyor

Type : Gravity Conveyor

Condition : New

Conveyor Width : 400-100mm

Conveyor Height : 700-1000mm

Conveyor Length : 1m-10m,optional

Roller Materials : steel/plastic

Roller Width : 400-1000mm

Roller Diameter : 38mm,45mm,50mm

Roller Numbers : 9pcs/m

Wheels/Casters : swivel casters,lockable casters

Contact Now

Description

Gravity Stainless Steel Roller Conveyor with Aluminum Beam is one of the most economic and simplest conveyor systems for transport cartons from one place to another.Minimal effort required in the movement of goods no matter it is manual assistance or gravitational force.

Features

Standard widths available: 300 –1000mm
Static load capacity:50kg/m
Can be supplied with locking casters
38mm,50mm or 60mm dia. rollers can be fitted from 100mm to 150mm pitches,center to center
Roller Materials:galvanized steel,stainless steel,pvc
Frame Material:carbon steel,stainless steel
Surface Treatment:liquid painted or powder coated

Gravity Stainless Steel Roller Conveyor with Aluminum Beam :https://youtu.be/nPkcL9aAQIQ

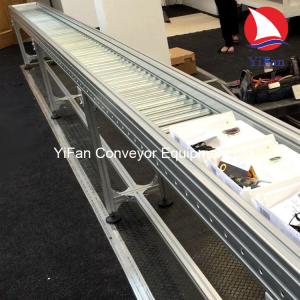

Gravity Stainless Steel Roller Conveyor with Aluminum Beam

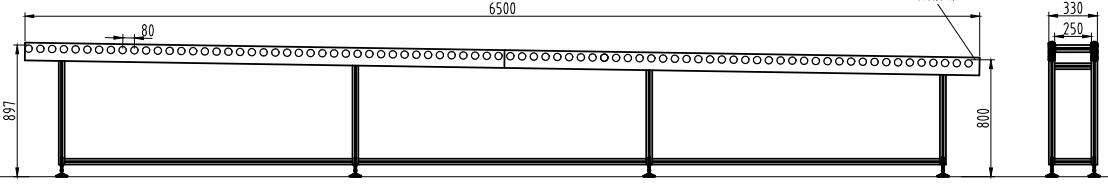

Technical Parameters

Roller Specs:38mm diameter,stainless steel 201 material
Roller Pitches:80mm center to center
Frame and Legs: Aluminum
Conveyor Size:L6500*W250*H800/897mm (height slightly adjustable±50mm)
Conveying Materials:plastic trays.

Contact Us

Ningbo YiFan Conveyor Equipment Co.,Ltd.

Email: sales@yfconveyor.com

Web: http://www.yfconveyor.com

Tel:+86 574 8630 1900

Fax:+86 574 8630 1900

Mob:+86 139 5824 8487

FAQ

Can this conveyor be operation in two way FORWARD & REVERSE?
YES
Is the speed controllable?
YES
How many KGS can this conveyor carry?
50KGS per square meter
What products can this conveyor be used to load?
Cartons,boxes and other flat bottom packages
Can we add other flexible conveyor to it at the floor level?
YES
Can we use customized roller and motor?
Yes
Can the height be customized?
YES
How do you dispatch this conveyor?
We will disapart it for dispatch
How long is the delivery time?
15-20 days
How long is the warranty?
1 year
Do you supply OEM & ODM service?
YES
Do you have user’s guide and maintenance instruction?
YES
What are the necessary spare parts we should keep?
Belts,motors,inverter,buttons
